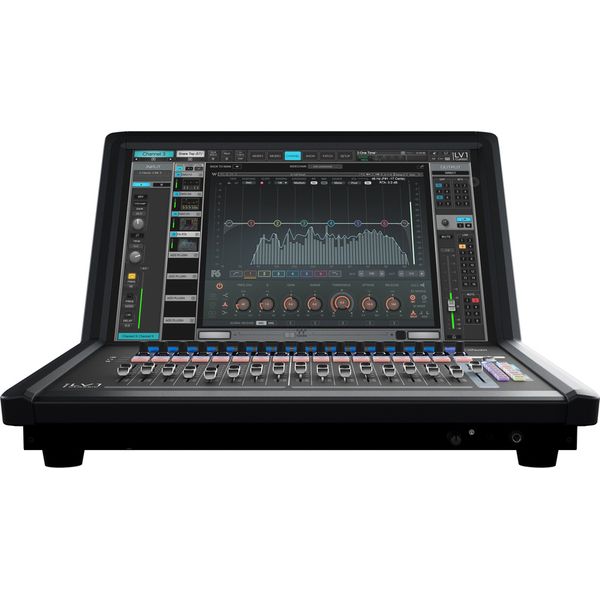

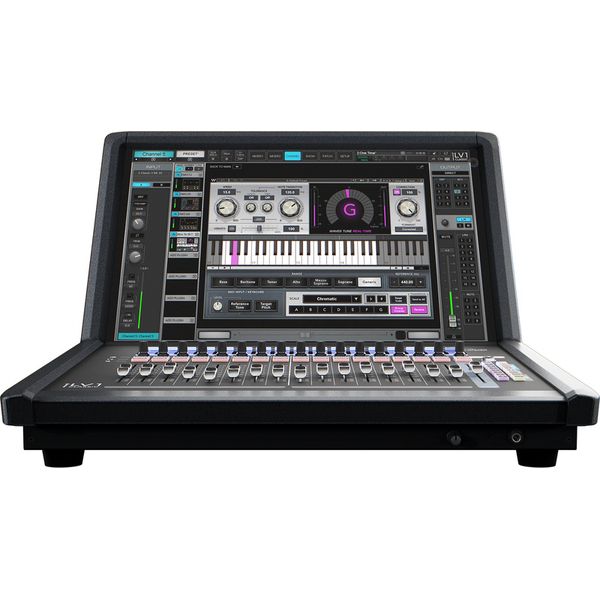

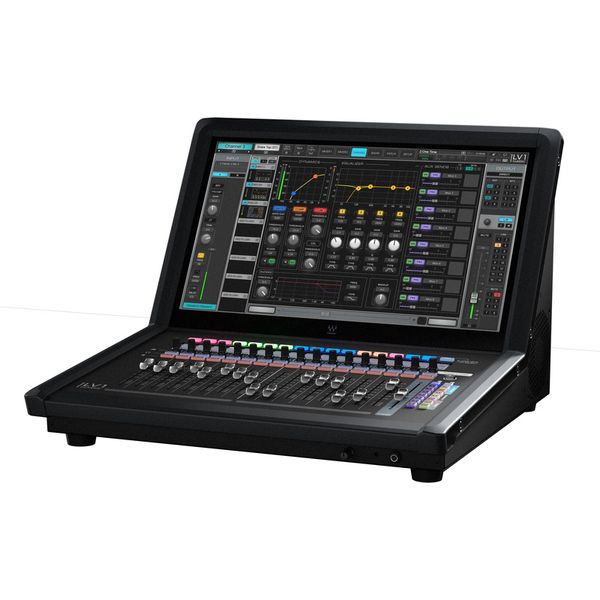

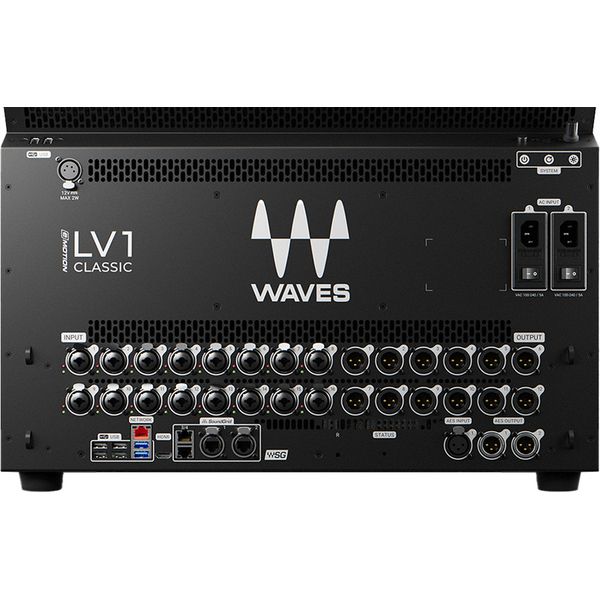

Waves eMotion LV1 Classic

Digital Live Mixer

• 64 mono/stereo inputs
• 44 mono/stereo busses
• 32-bit Float Mix Engine with 44.1-96 kHz
• Latency: 0.8 ms
• 16 waves signature preamplifier
• 12 line outputs
• Eight mute groups and 16x link DCAs with spill function
• One AES3 In
• Two AES3 Out
• Four SoundGrid connections: 2x Ethercon, 2x RJ45
• One HDMI output

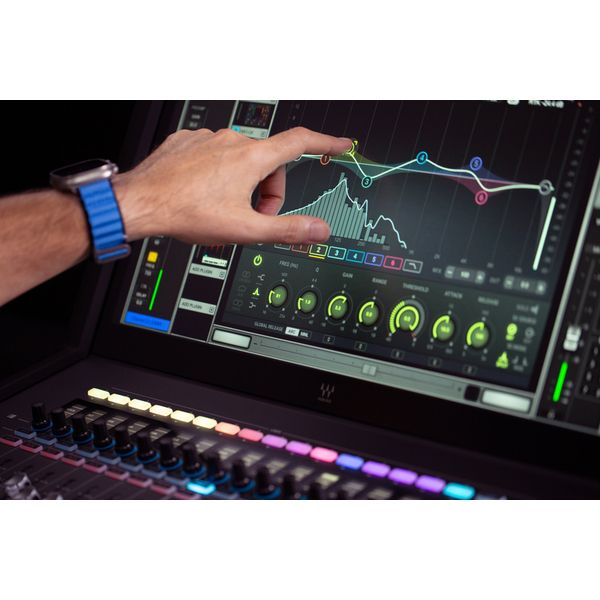

• 21.5" Multi-Touchscreen

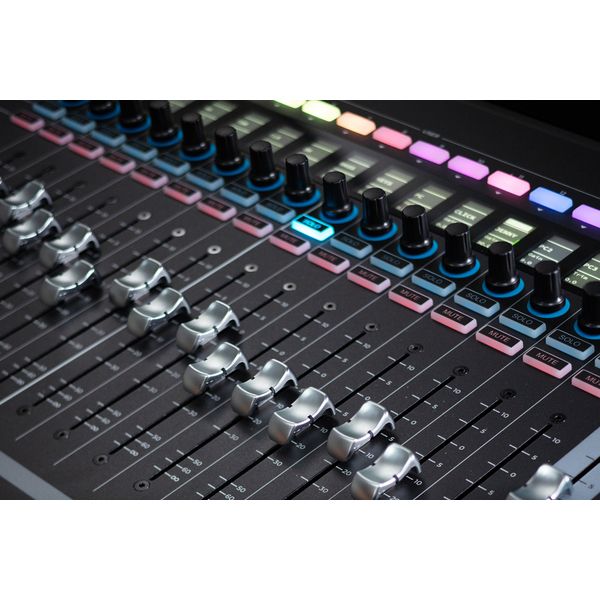

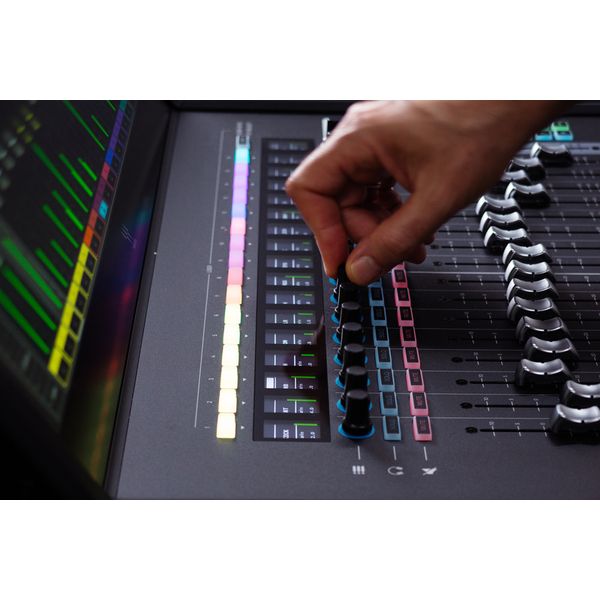

• 17x 100 mm Alps-Motorfader
• 17 encoders with mini display and LCD display
• Select/Mute/Solo buttons per channel
• 16 layers with utility buttons and tempo pad

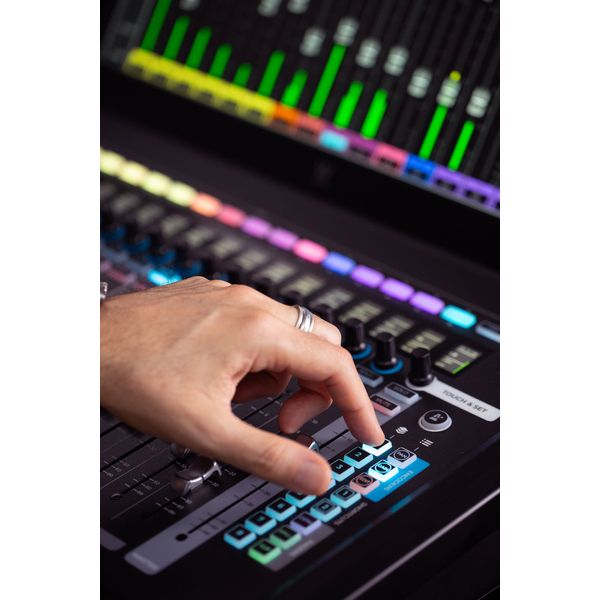

• 16+2 user-customisable shortcut buttons
• Processing with compressor, EQ, Dynamic EQ, Vocal Tuning, Feedback Control, Saturation & FX
• 8-slot rack for eight plug-ins per channel
• Immersive in-ear mixing eMo IEM (software upgrade required, not included)
• Dugan automixing (software upgrade required, not included)
• Built-In Ultra-Low-Latency SoundGrid Server
• Expandable to up to 14 SoundGrid compatible devices including Dante and MADI converters
• Recording of 16 tracks locally on USB and 128 tracks on remote computer possible
• Dual Power Supply
• Remote Control Apps: MyFOH, MyMon
• Dimensions (W x H x D): 559 x 401 x 561 mm
• Weight: 17.2 kg
• Includes Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
