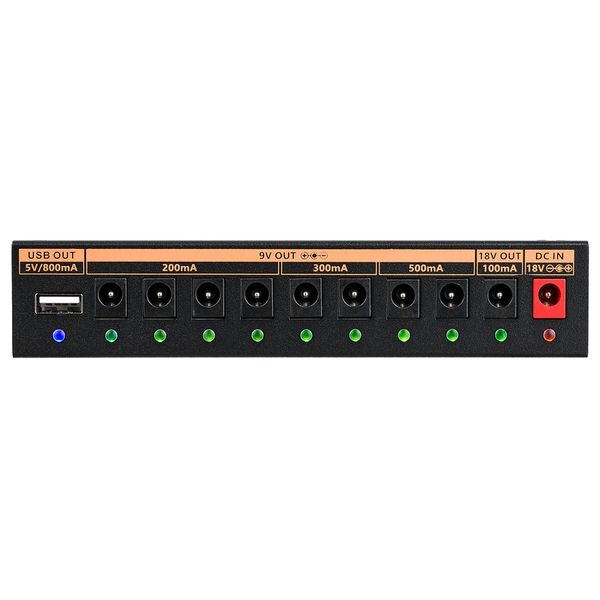

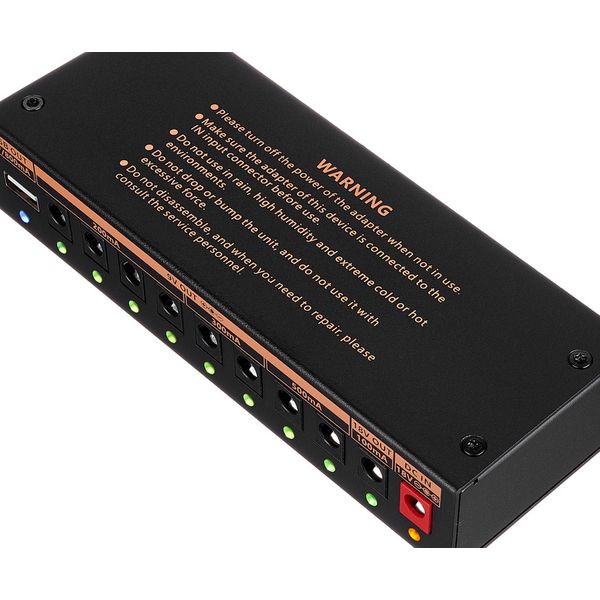

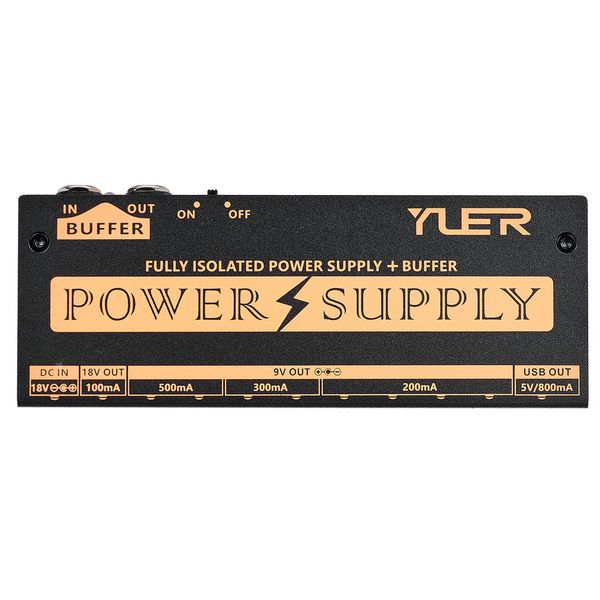

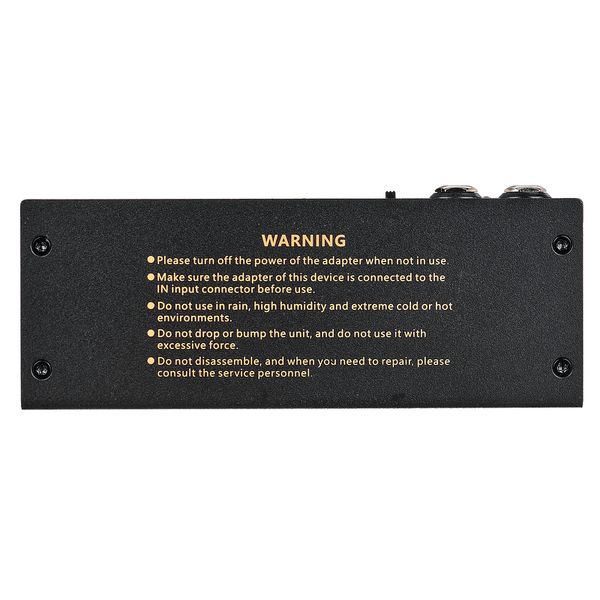

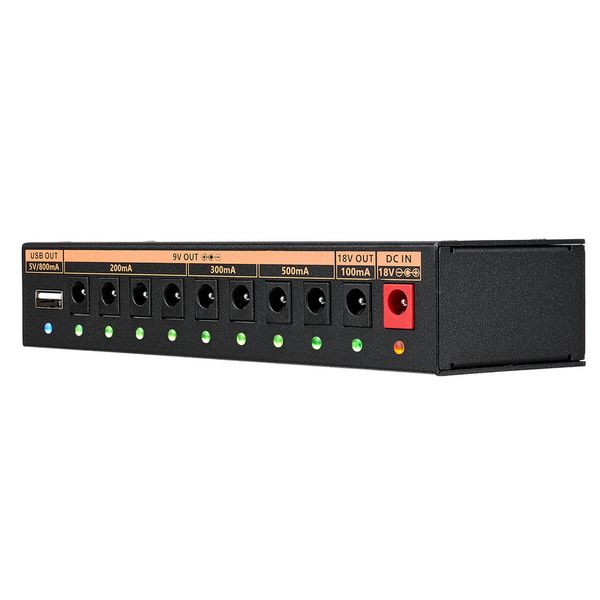

Yuer PR-07 Isolated Power Supply

Multi-Power Supply for Effect Pedals

• Integrated buffer (switchable)
• 4 x 9 V DC output, each with 200 mA load capacity, 2.1 x 5.5 mm barrel connector, centre negative
• 2 x 9 V DC output, loadable with 300 mA each, 2.1 x 5.5 mm barrel connector, centre negative
• 2 x 9 V DC output, each with a load capacity of 500 mA, 2.1 x 5.5 mm barrel connector, centre negative
• 1 x 18 V DC output, loadable with 100 mA, 2.1 x 5.5 mm barrel connector, polarity (-) inside
• 1x 5V USB output, loadable with 800 mA
• USB Type A
• Individual status LEDs and short-circuit protection for each power connection
• Input voltage: 18 V DC, polarity (+) inside

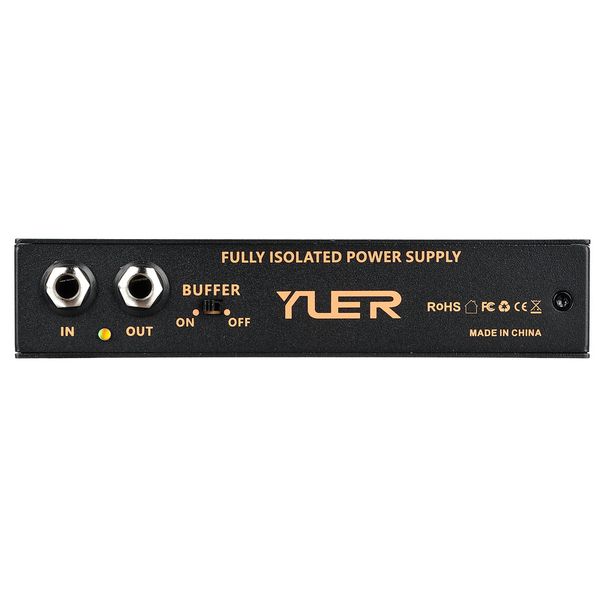

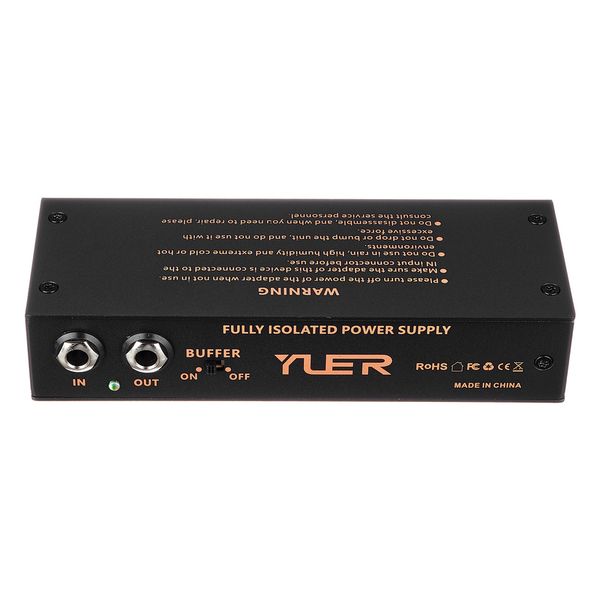

• Input and output: 6.3 mm mono jack
• Dimensions (L x W x H): 160 x 60 x 32 mm
• Weight: 400 g

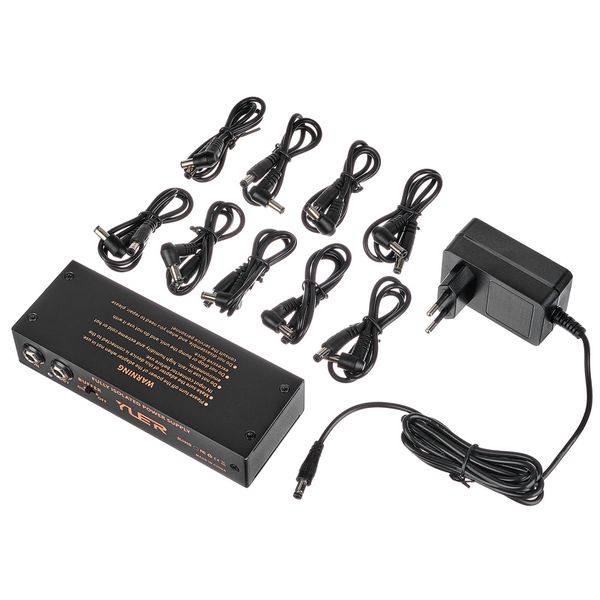

• Includes 1x 18V DC power supply unit and 9 x DC power cable (to power the effect pedals)
