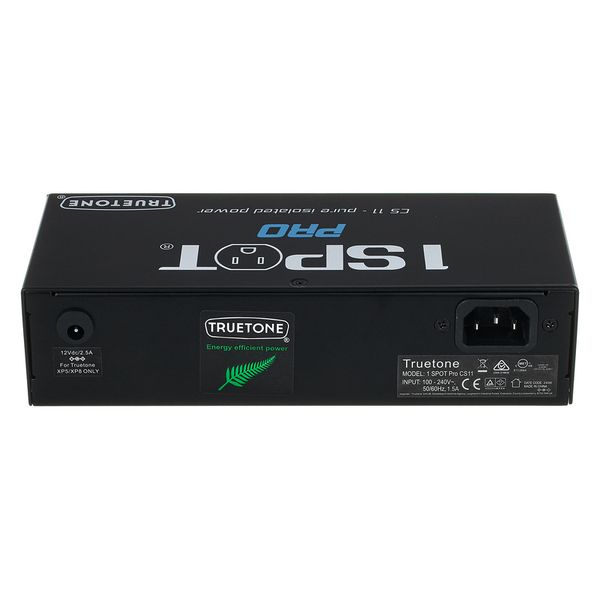

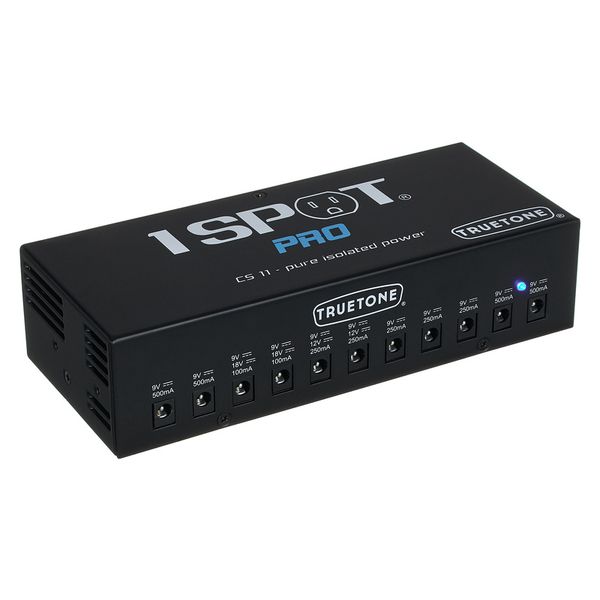

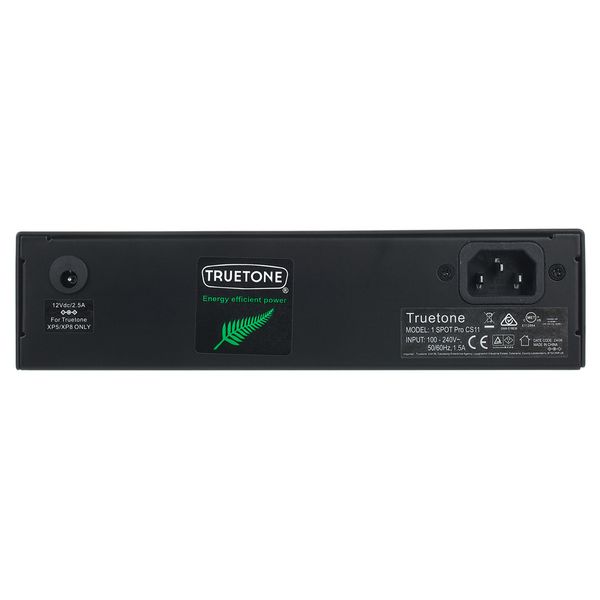

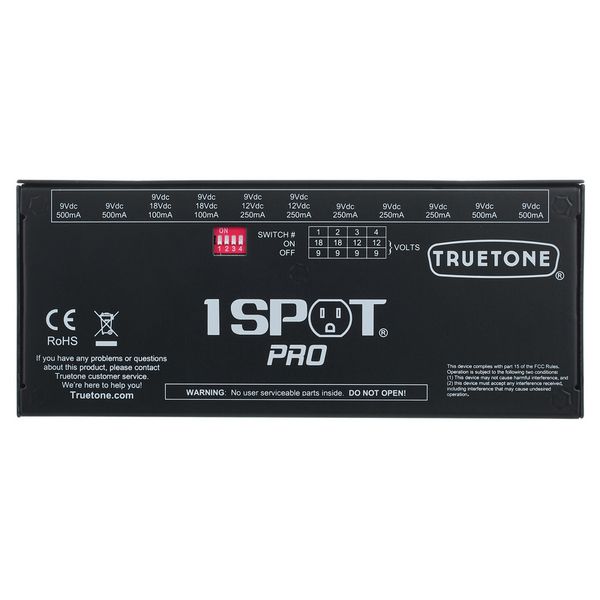

Truetone 1 Spot Pro CS11

Multi-output power supply for effect pedals

• Switched-mode power supply technology
• Dimensions (W x D x H): 205 x 86 x 50 mm
• Weight: 971 g

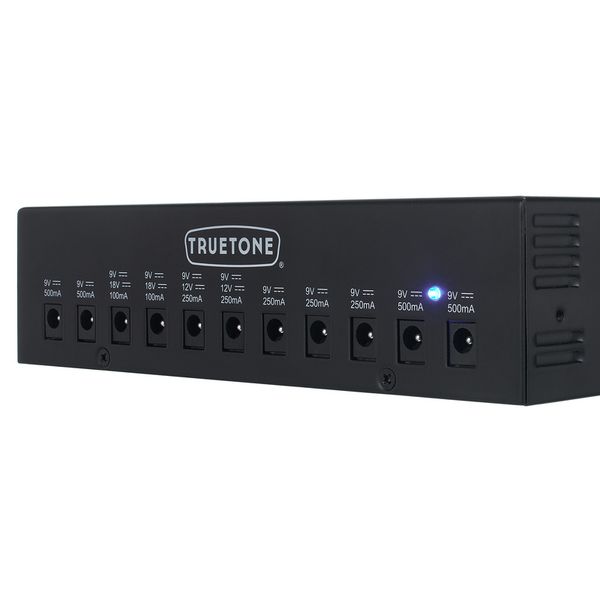

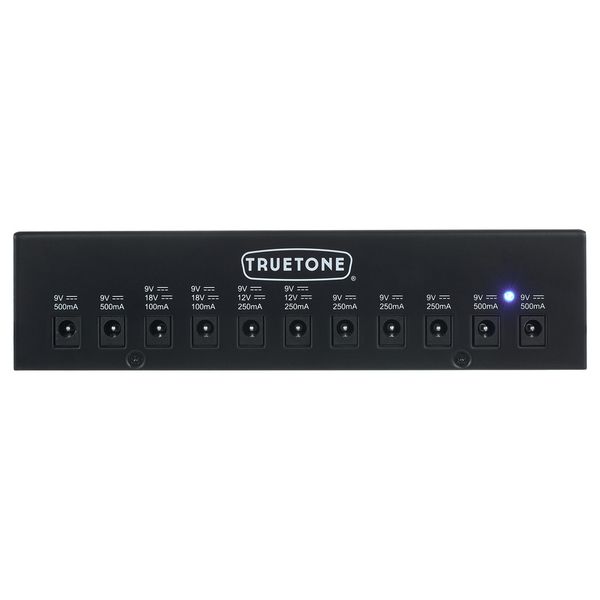

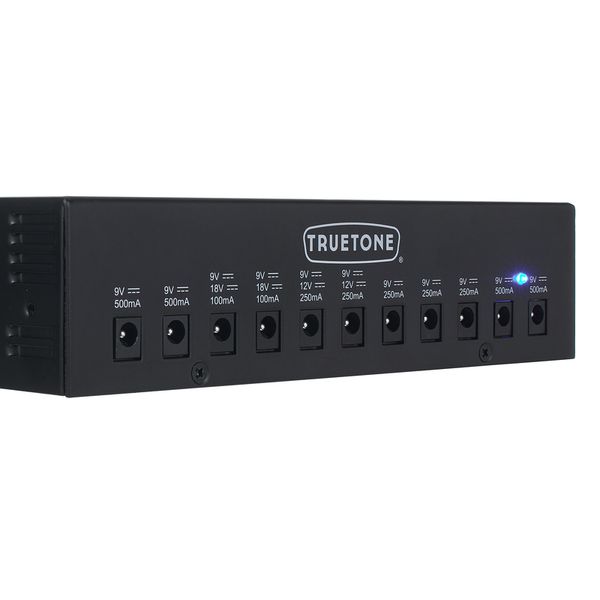

Connections:

• Output 1-2: 9V DC @ 500 mA (individually isolated)
• Output 2-4: 9/18V DC @ 100 mA (individually isolated)
• Output 5-6: 9/12V DC @ 250 mA (individually isolated)
• Output 7-9: 9V DC @ 250 mA (individually isolated)
• Output 10-11: 9V DC @ 500 mA (individually isolated)

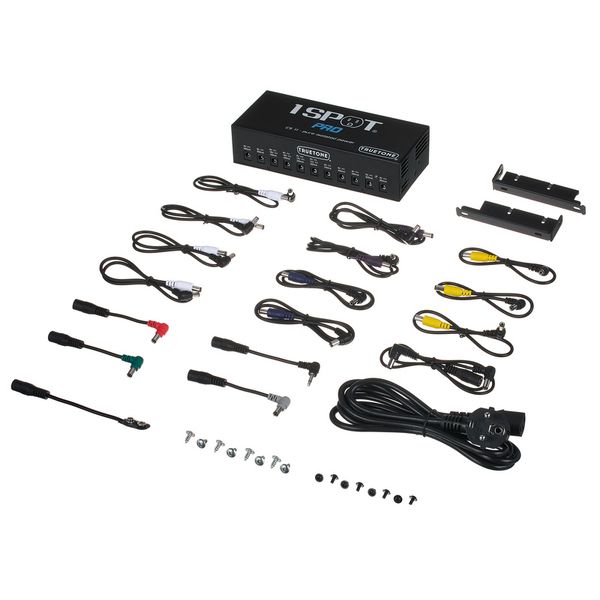

Included cables:

• 2 x 5.5 x 2.1 mm barrel connector to 5.5 x 2.1 mm barrel connector, length: 66 cm
• 2 x 5.5 x 2.1 mm barrel connector to 5.5 x 2.1 mm barrel connector, length: 55.9 cm
• 4 x Reverse polarity adapters 5.5 x 2.1 mm barrel connector to 5.5 x 2.1 mm barrel connector, length: 45.7 cm
• 3 x Reverse polarity adapters 5.5 x 2.1 mm barrel connector to 5.5 x 2.1 mm barrel connector, length: 30.5 cm
• 1 x Adapter 2 x 5.5 x 2.1 mm barrel connector to 5.5 x 2.1 mm barrel connector, length: 61 cm
