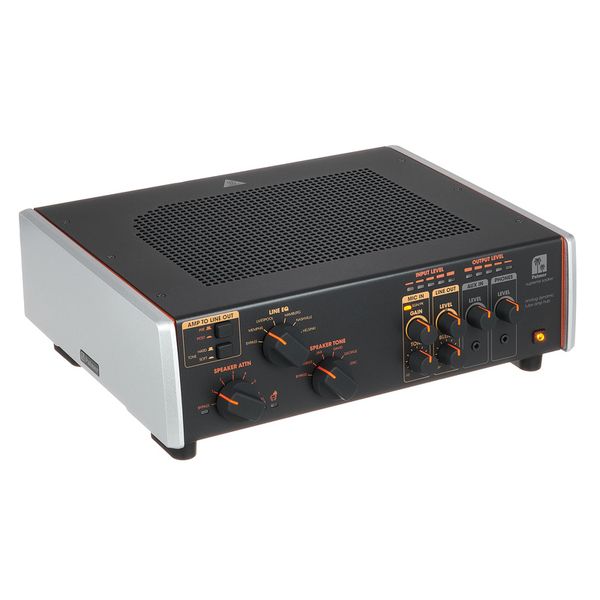

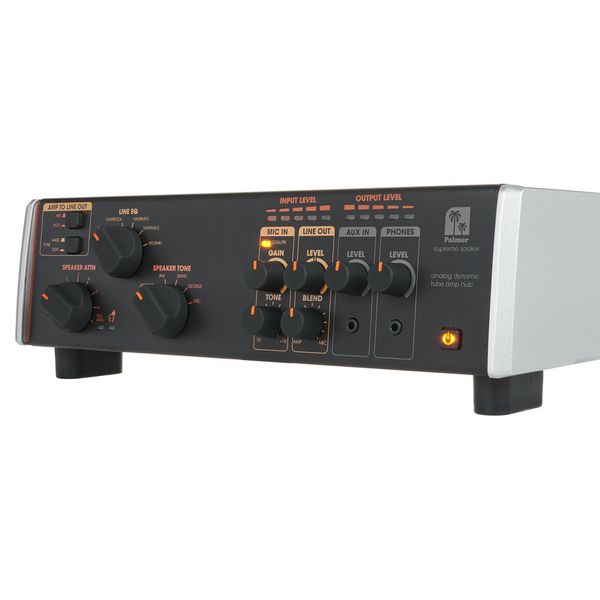

Palmer Supreme Soaker

Power Attenuator

• Reactive power reducer and load box with a finely tuned analogue speaker simulator
• Enables the sweet spot of the amplifier to be used at any volume and even without a speaker for silent practice or recording
• 6 Sound settings for the speaker
• 6 Sound settings for the line out

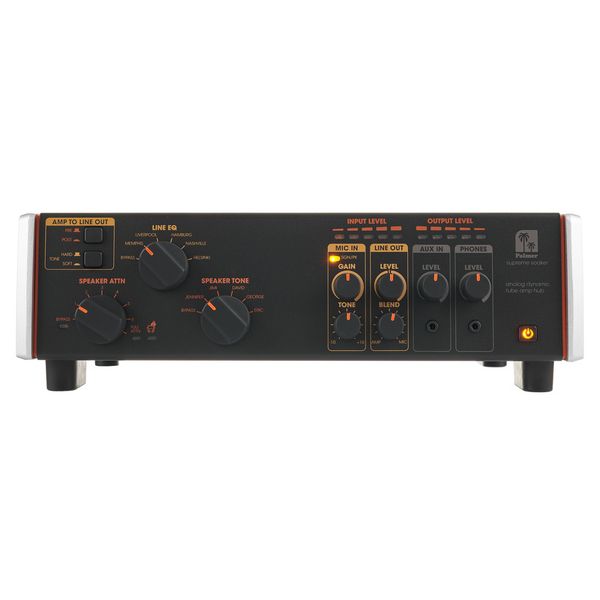

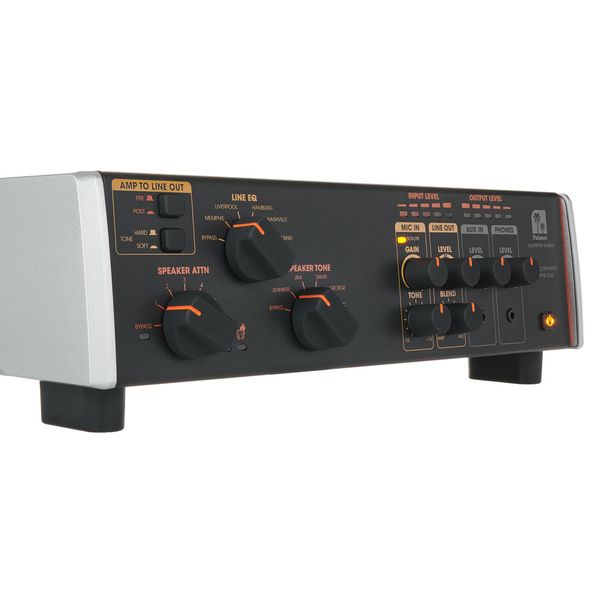

• Controls: Speaker Attn, line EQ, speaker tone, mic in gain and tone, line out level and bland, aux in level, phones level
• Push buttons: Amp to line out pre/post and tone hard/soft, ground lift

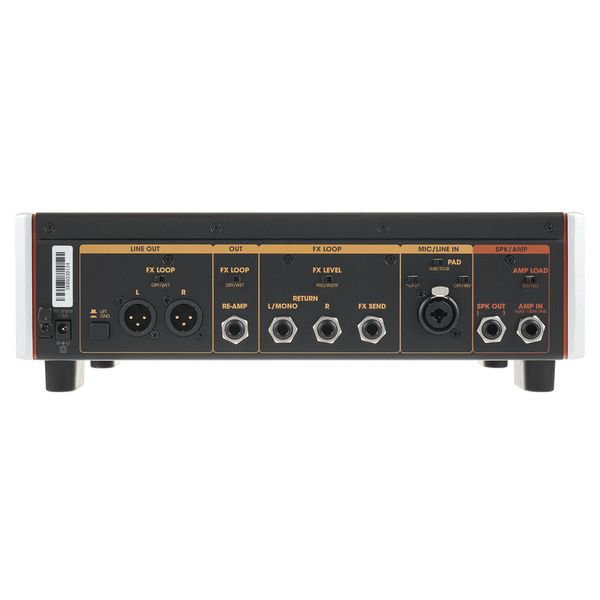

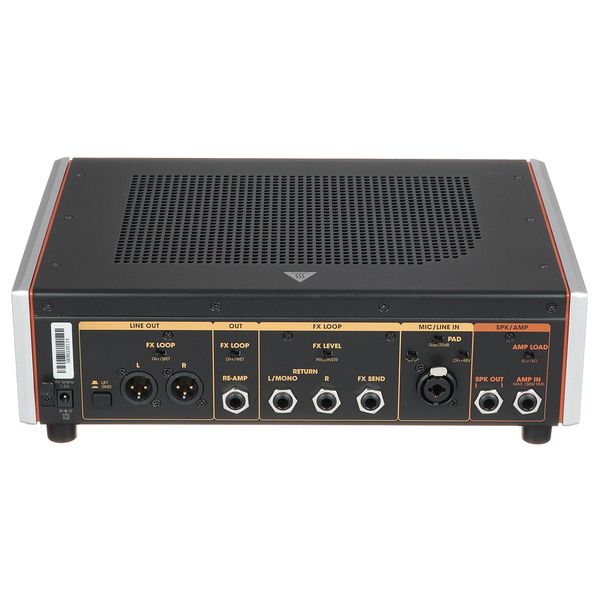

• Switches: Line out FX loop dry/wet, re-amp out FX loop dry/wet, FX level pro/inst, mic pad, phase and 48 V phantom power on/off, speaker impedance 8/16 ohms
• LED: Input level, output level, mic signal peak
• Impedance: 8 or 16 ohms
• Stereo aux input
• Amplifier input: 6.3 mm jack
• Headphone output
• Speaker outputs: 2 x 6.3 mm jack
• Line output: 6.3 mm jack
• DI output: XLR
• Solo foot switch: 6.3 mm jack
• Power consumption: 1500 mA

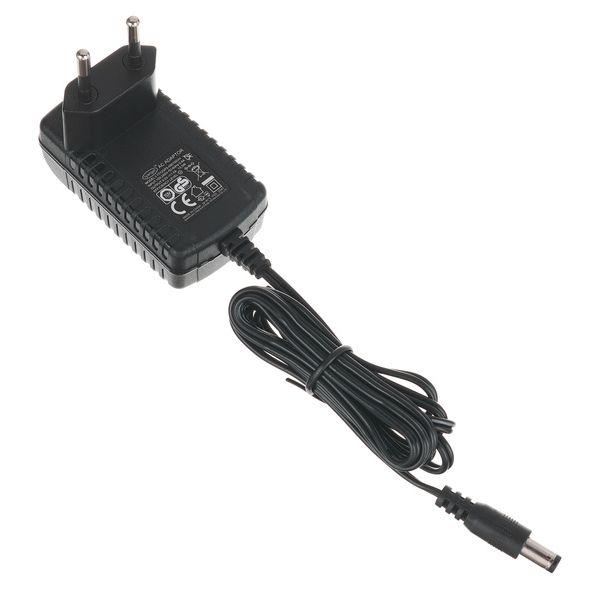

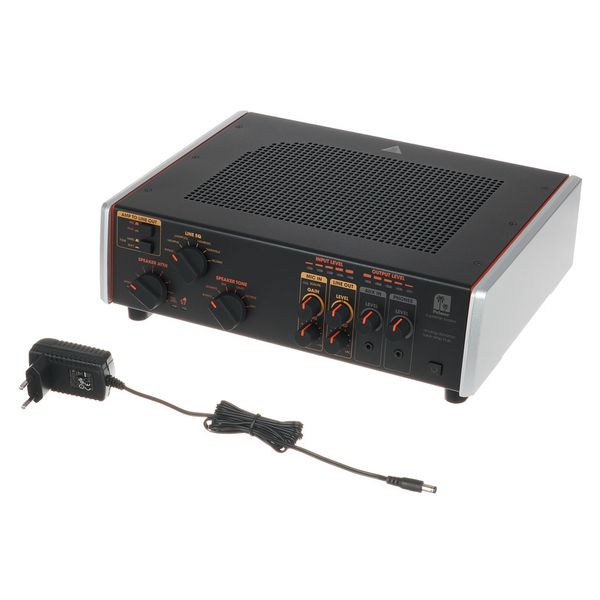

• Power supply via 9 V DC power supply unit (2.1 x 5.5 mm coaxial socket, centre negative) (included)
• Dimensions (W x D x H): 334 x 274 x 108 mm
• Weight: 6.6 kg
